Point-fixing (Spider) Curtain Wall
Point-fixing (Spider) Curtain Wall
Point-fixing (Spider) Curtain Wall
Point-fixing (Spider) Curtain Wall

Point-fixing (Spider) Curtain Wall

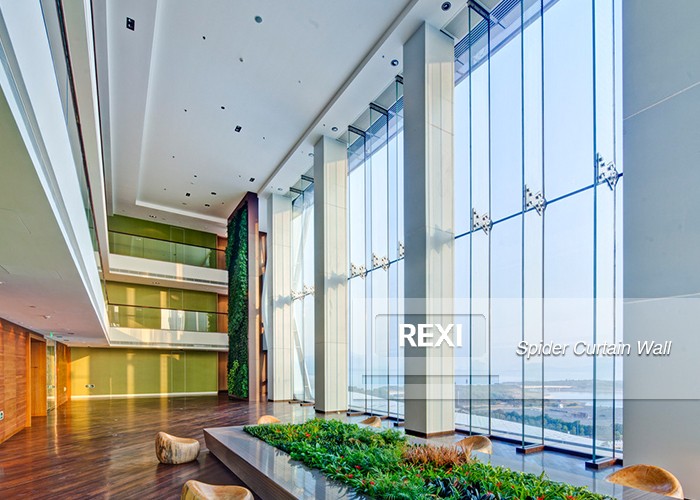

REXI Point-fixing (Spider) Curtain Wall consists of decorative surface glass, connection component and support structure. According to the decorative effect of facade, it is divided into a flat-headed Point-fixing curtain wall and a convex point-fixing curtain wall. According to the support structure, it is divided into glass rib supported point-fixing curtain wall, steel structure supported point-fixing curtain wall, self-balancing tension cable supported point-fixing curtain wall and single cable-supported glass curtain wall.


Product Details

REXI Point-fixing (Spider) Curtain Wall consists of decorative surface glass, connection component and support structure. According to the decorative effect of facade, it is divided into a flat-headed Point-fixing curtain wall and a convex point-fixing curtain wall. According to the support structure, it is divided into glass rib supported point-fixing curtain wall, steel structure supported point-fixing curtain wall, self-balancing tension cable supported point-fixing curtain wall and single cable-supported glass curtain wall.

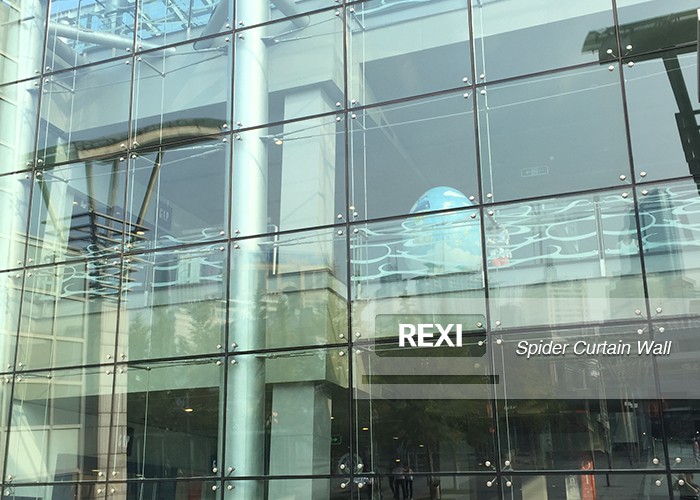

China Spider curtain wall M1-2


STRUCTURAL SYSTEM:

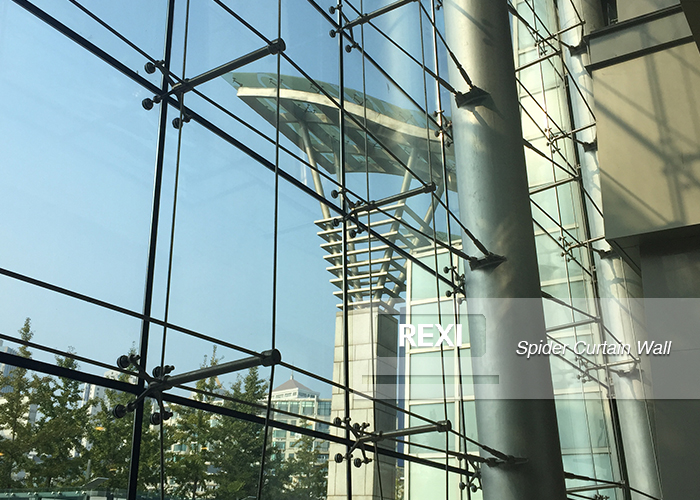

 1. Most of point-fixing curtain walls are using steel structure supported system. This composite steel structure system consists of curved-surface steel pipe lattice shell system and curved-surface cable networks system; Lattice shell system bears takes the exterior load action, while cable networks system gets the internal stability.

2. Connection features - steel pipe components are connected by the embedded universal spherical hinges joint with better continuity and connections.

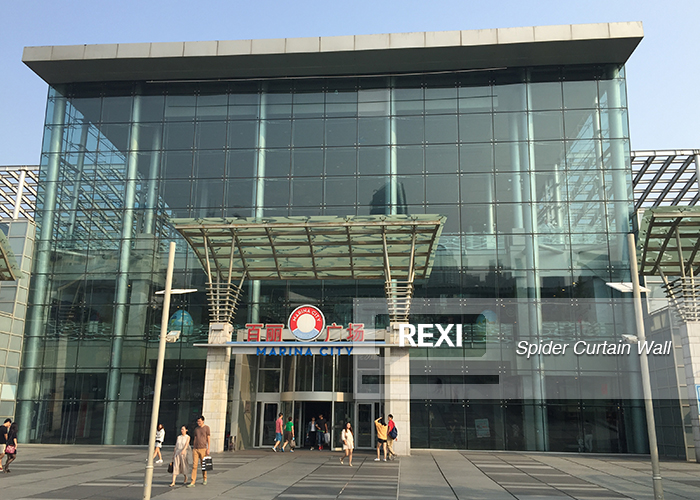

3. Architectural effect: Point-fixing curtain wall has the effect of transparent, brightness, legerity, elegant and luxurious atmosphere.


16

China Spider curtain wall M1-4

18


PRODUCT TYPES:

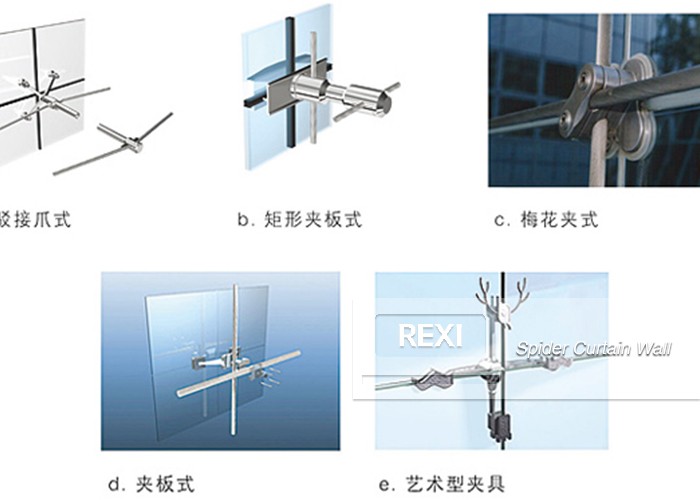

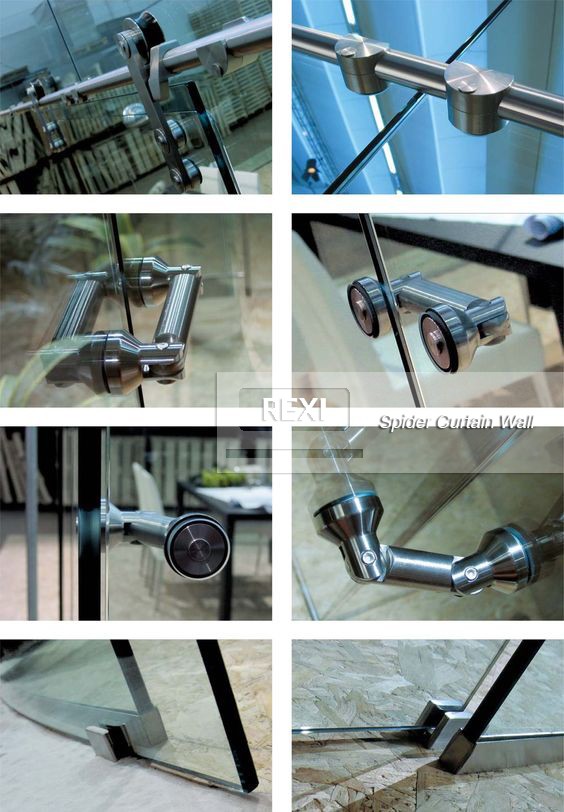

 1. The steel structure can use circular steel tube or bar, or fish belly type steel hinge supporting the structure or other structural hinge forms. The spider claws are installed between the steel structure and the glass panel with its four corners fixed. The fasteners of spider claws pass through the glass panel holes and clamping the glass panel after being fastened. This connection structure is flexible in material selection and simple in installation.

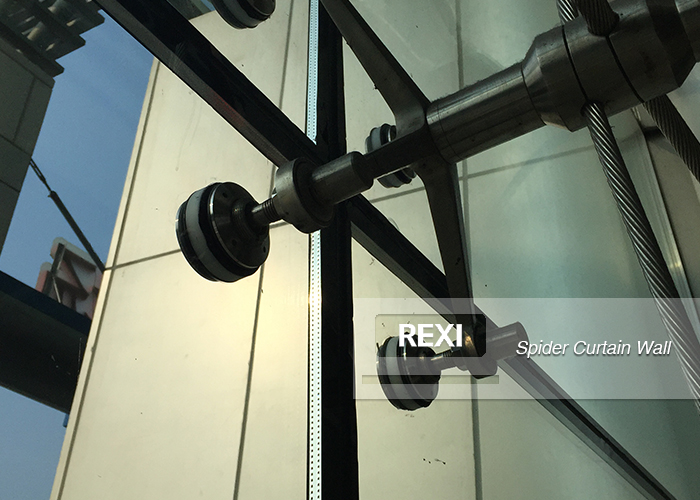

2. Self-balancing Tension Cable Supported Point-fixing Curtain Wall:

It consists of pulling cable or draw rod and steel structure, with the prestressed force in pulling cable or draw rod keeping itself balanced and stable. It can take outside load action by decreasing the load transferred to the major structure. When designing, the prestressed force of the pulling cable or draw rod must be considered in advance. The pre-stressing of the tension must be pre-specified. The actual installation must be carried out in strict accordance with the prescribed standards.

3. Single Cable Point-fixing Curtain Wall

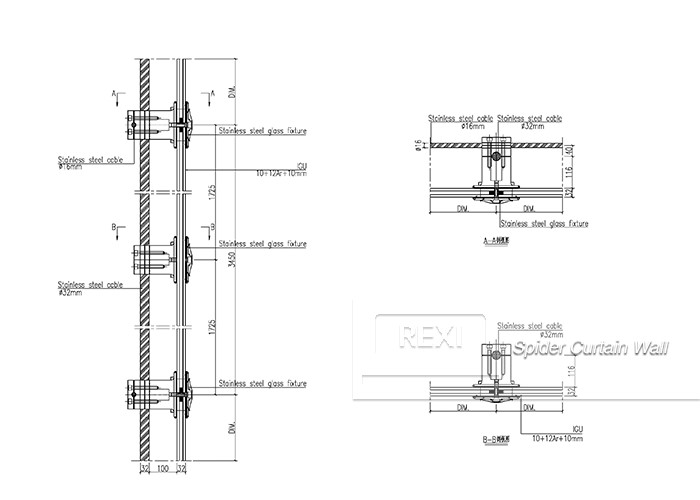

It is supported by concave soft cable networks, consists of large scale hanging cable and single layer wire crossing network point system. The large scale hanging cable network system forms different concave fold curtain wall by advanced form finding technology. This system has the super anti earthquake capability between the large scale cable and single layer wire network.

4. Glass Rib Supported Point-fixing Curtain Wall

There is no steel structure in this system, the glass rib is used for supporting, and the spider claws are connected to the strong thick glass rib, the fasteners of spider claws pass through glass panel holes and clamping the glass panel after being fastened. The top of glass rib is fixed as hanging connection, and the base is as flexible connection.


China Spider curtain wall M1-3

China Clear Glass P2


REXI Point-fixing (Spider) Curtain Wall consists of decorative surface glass, connection component and support structure. According to the decorative effect of facade, it is divided into a flat-headed Point-fixing curtain wall and a convex point-fixing curtain wall. According to the support structure, it is divided into glass rib supported point-fixing curtain wall, steel structure supported point-fixing glass curtain wall, self-balancing tension cable supported point-fixing curtain wall and single cable-supported glass curtain wall. REXI Façade can supply all the point-fixing curtain walls, different structure, and different price. We can recommend the suitable structure to clients as their requirements. We also have strict standards in the material of point-fixing curtain walls, our suppliers are all very famous both in China and the world, like KinLong.

 China spider curtain wall factory often calls it point-support curtain wall. According to the decorative effect of the facade, it is divided into flat head-supported and a convex head-supported. According to the support structure, it is divided into glass rib, steel structure, steel tie rod and steel cable tension curtain wall, they have different spider curtain wall price. And China spider curtain wall suppliers provide raw materials for us in strict accordance with the product standard.

REXI Facade is China professional spider curtain wall manufacturer and has specialized in building glass for more than ten years enjoying a good reputation. We also have a team chasing the excellence, not only providing good sales service, but the technical must provide the necessary technical support, which can ensure the rapid and effective to meet all client’s needs. REXI spider curtain wall is your right choice, and we can provide the modern design according to your requirements.
