Stick Curtain Wall
Stick Curtain Wall
Stick Curtain Wall
Stick Curtain Wall
Stick Curtain Wall
Stick Curtain Wall
Stick Curtain Wall

Stick Curtain Wall

REXI Stick Curtain Wall requires the components are fabricated in the workshop and transported to the construction site, installing the individual framing members one by one according to the construction process to form the support grids for in -filled glazing or other panels.


Product Details

REXI Stick Curtain Wall requires the components are fabricated in the workshop and transported to the construction site, installing the individual framing members one by one according to the construction process to form the support grids for in -filled glazing or other panels.

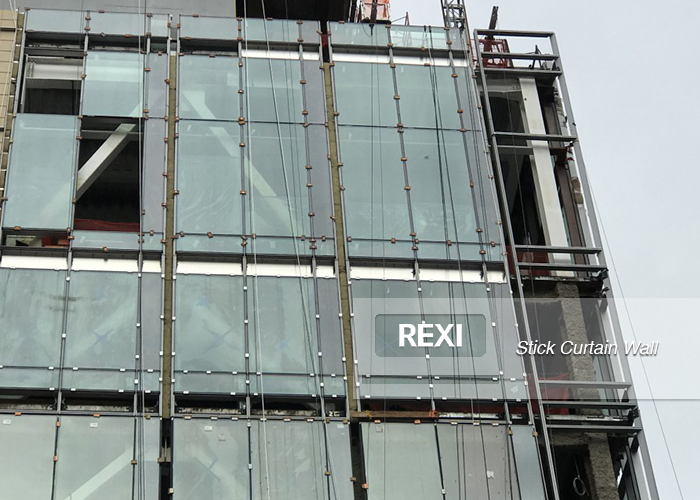

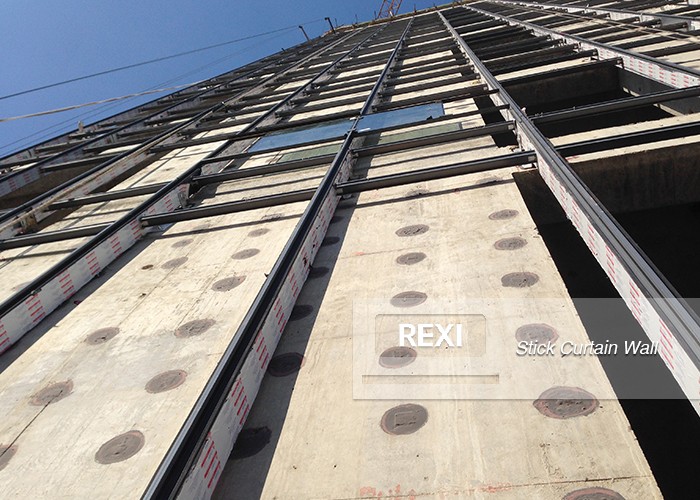

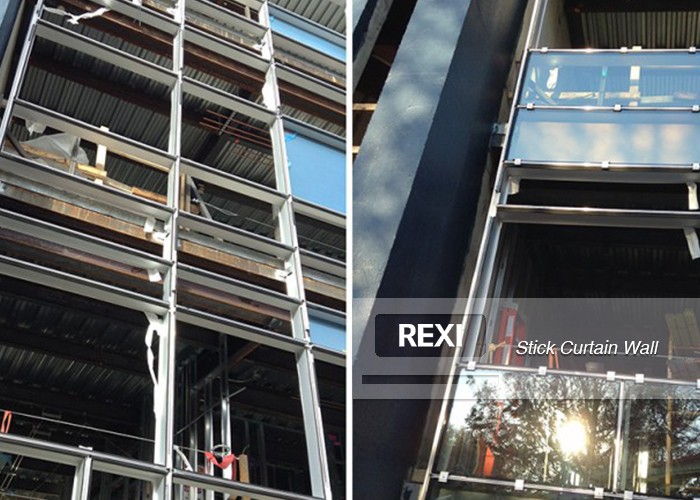

The vertical frame/mullion of the stick curtain wall shall be installed first, and then it is the beam/transom. They form the support grids for face materials. The load effect of panels is transmitted to the main structure through the vertical frame/mullion and the beam/transom. The normal form of the structure is: the panel material unit component is fixed on the skeleton formed by vertical frame/mullion and beam/transom, the vertical edge of panel material is fixed to vertical frame/ mullion, horizontal one is fixed to the beam/ transom. The sealing adhesive is covering the gaps between panel material and both vertical frame/mullion and beam/transom, preventing rain water and air penetrations.


China Facde Curtain Wall M3


PRODUCT TYPES:

-Stick Concealed Frame Curtain Wall

-Stick Exposed Frame Curtain Wall

-Stick Semi-Concealed Frame Curtain Wall

The stick curtain wall suppliers all use the tempered safety glass, connecting to the support structure by metal fasteners and connectors in China. The weather sealant only takes the role of sealing and does not bear the load, even if the main structure is accidentally destroyed, the tempered safety glass is broken into pieces and forms a so-called "glass rain". There will be no serious injury caused by the falling of large glass plate.

.

QQ图片20181112155243

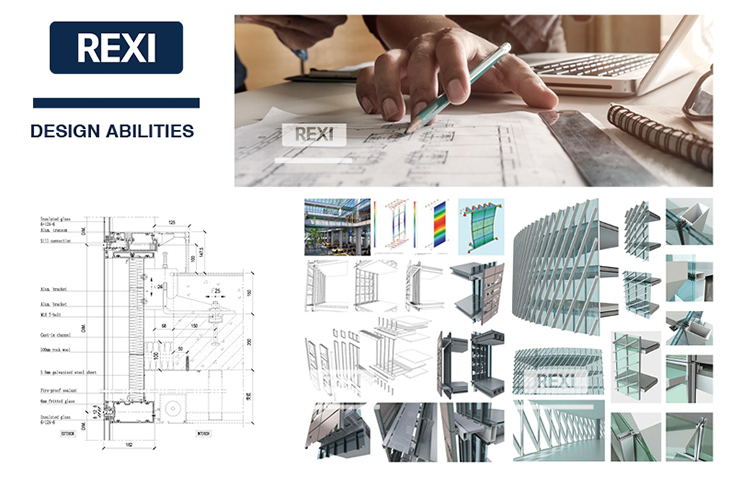

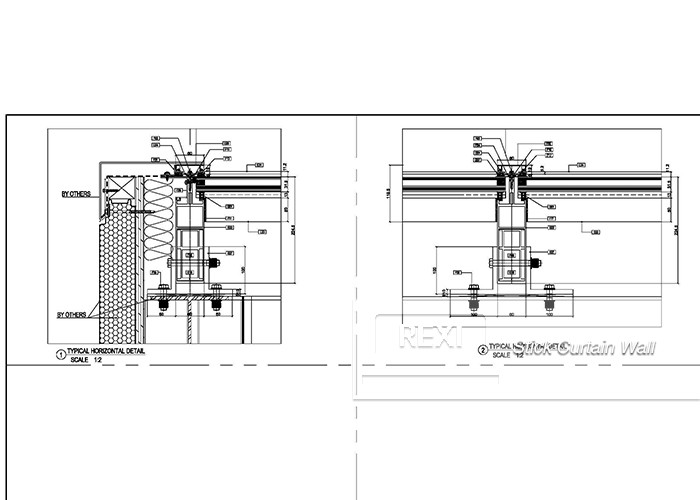

Design

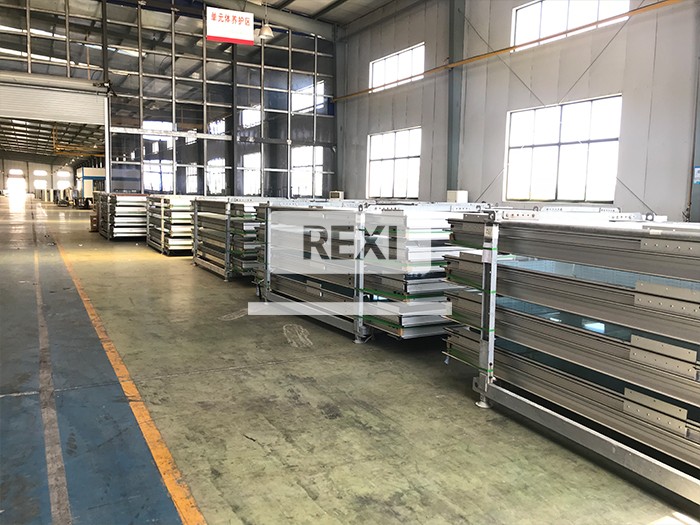

Production

FEATURES:

 The stick curtain wall system is relatively mature, widely used in the world for more than 40 years with flexible construction method.

-The stick curtain wall structure has strong adaptability, and the installation sequence is basically not affected by the main structure. The stick curtain wall system adopts heat insulation structure and deploys double sides squeezed rubber strips with air insulation function, getting the heat transmission coefficient for frames to reach to 1.94W/m2K.

-The stick wall system has the good performance, like water tightness and air tightness, good heat and sound insulations, noise reduction, and earthquake resistance.

The components of the panels are manufactured and assembled in the factory, the quality of structural sealant can also be guaranteed.

-The installation work is relatively required much stricter on site, especially, set out the positions of grid lines of vertical frames/mullions. There are also some control points, like bottom brackets connections, panels’ connections. It is better to have the high quality workers, the site management is required.



REXI Façade can also select serial heat insulation strips and different glass allocation, the stick curtain wall system can obtain different heat preservation property to satisfy energy saving requirements of the buildings in different areas as clients’ requirements.


China Facde Curtain Wall M5

China Stick Curtain Wall M1-1

China Stick Curtain Wall M1-2

China Stick Curtain Wall M1-3

China Stick Curtain Wall M1-4

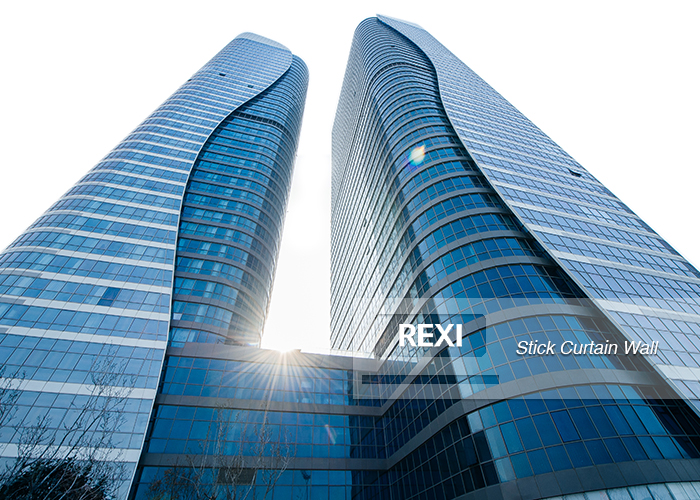

Projects


China stick curtain wall factory has a variety of frame structures which influence the stick curtain wall price. The support components are finely processed and have a smooth surface. They have a good sense of craftsmanship and art. Also it has good environmental protection and energy saving, one of the characteristics is good permeability, we often use non-light pollution white glass, ultra-white glass and low-emissivity glass, especially insulating glass to achieve energy-saving. Therefore, many architects prefer to use it.

REXI Facade is China professional stick curtain wall manufacturer and has specialized in building glass for more than ten years which enjoys a good reputation. We also have a team who pursuits of excellence, not only the experienced sales can provide good sales service, but the technical personnel must provide the necessary technical support, which can ensure the rapid and effective to meet all customer needs. REXI stick curtain wall is your right choice, and we provide the modern design according to your requirements.
