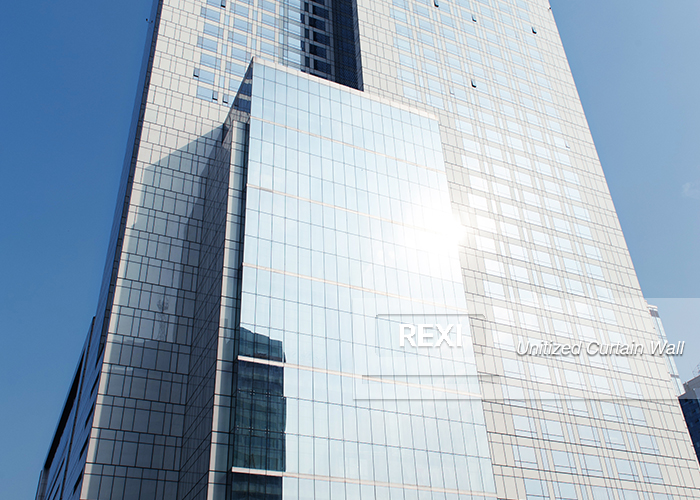

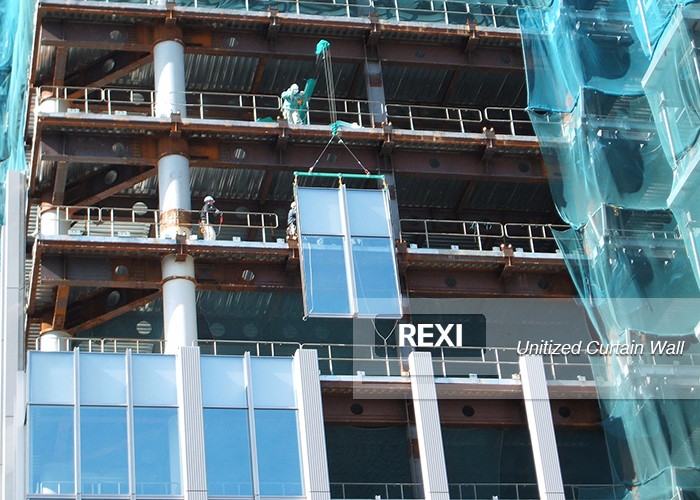

REXI Facade Unitised Curtain Wall Consist of different components and coated materials fabricated at shop and assembled into a single whole panel with the panel height of one or more storeys, then transported to construction site for erection. The panels are precisely connected to the pre-embeds on the main structure of buildings, with the fine 3D adjustments of the brackets system if necessary to complete the curtain wall installation.

REXI Unitized Curtain Wall, is one of the most important glass curtain wall solutions.


Product Details

Unitised Curtain Wall

REXI Facade Unitised Curtain Wall Consist of different components and coated materials fabricated at shop and assembled into a single whole panel with the panel height of one or more storeys, then transported to construction site for erection. The panels are precisely connected to the pre-embeds on the main structure of buildings, with the fine 3D adjustments of the brackets system if necessary to complete the curtain wall installation.

REXI Unitized Curtain Wall, is one of the most important glass curtain wall solutions.

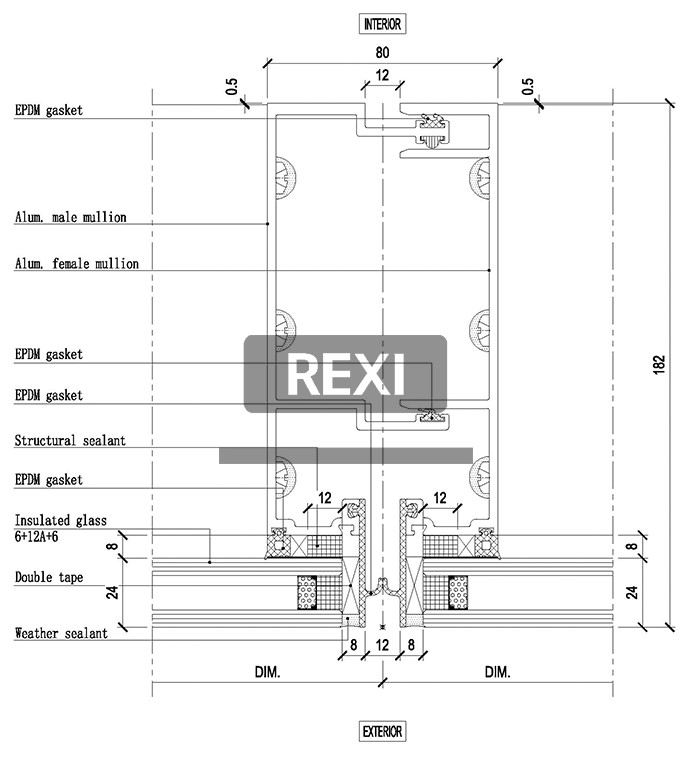

China Facade Curtain Wall M1-1


SYSTEM PERFORMANCE:

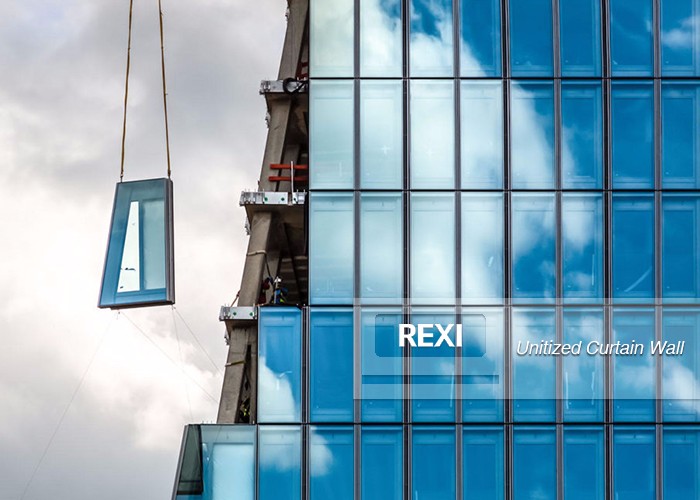

The unitized panels are assembled in the factory workshop with the high, and installed simultaneously with the main structure of the civil works with fast efficiency on site to shorten the whole construction period and easily protected. The system structure adopts the equal pressure principle, with the internal drainage system to guarantee the good performance of anti- rain water leakage and airtightness. The joints of the unitised panels are all sealed with special weather resistance rubber strips to ensure, the curtain wall self-cleaning and lowering the risk of pollution on the surface. The male-female socket joint mode adopted can also help the system have strong earthquake resistance.


PRODUCT TYPES:

-Unitised Concealed Frames Curtain Wall

-Unitised Exposed Frames Curtain Wall

-Unitised Semi-Conealed Frames Curtain Wall

-Hyperboloid Unitised Curtain Wall

-Glass Fin Unitised Curtain Wall


1

2

3

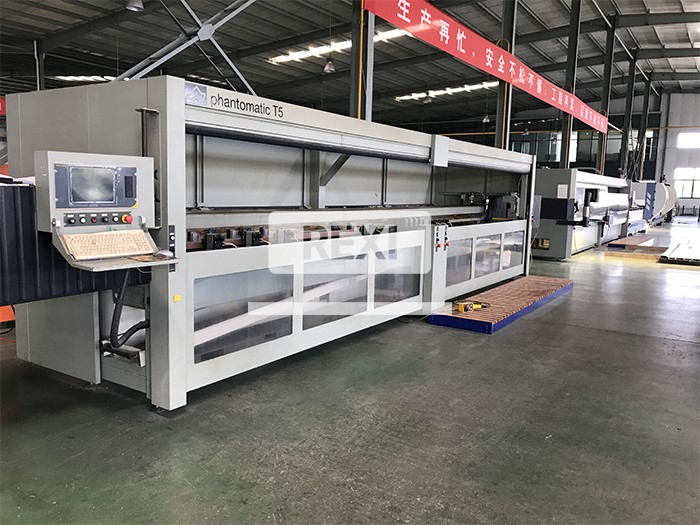

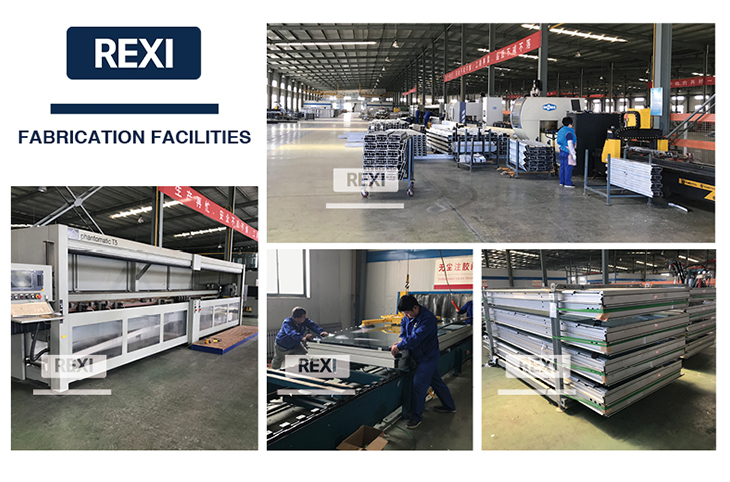

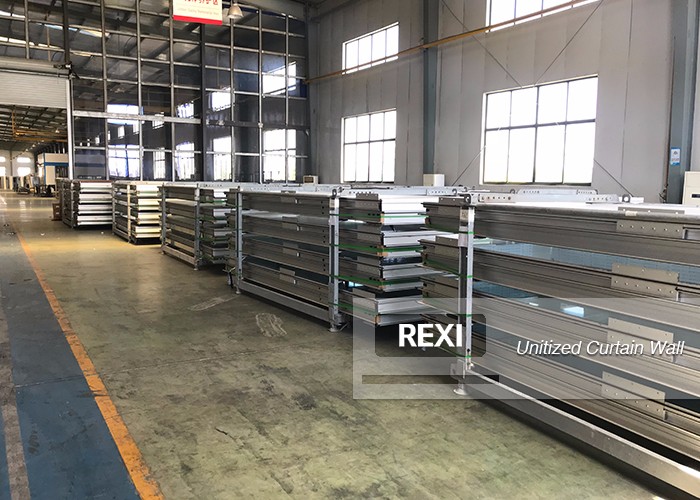

Production


FEATURES:

-The unitized curtain wall system is relatively mature, widely used in the world for more than 20 years with flexible construction method.

-The unitized curtain wall system can be installed simultaneously with the main structure of the civil works, relatively independent.

-The unitized curtain wall system has the good performance, like water tightness and air tightness, good heat and sound insulations, noise reduction, and earthquake resistance.

-The components of the unitized panels are manufactured and assembled in the factory, the quality of structural sealant can also be guaranteed.

-The installation work is relatively required much stricter on site, especially the sealant work.

-There are also some control points, like the pre-cleaning, gasket cutting. It is better to have the high quality workers, the site management is required.



China Unitized Curtain Wall I2

China Facade Curtain Wall M1-2

China Facade Curtain Wall M1-3

 China Facade Curtain Wall M2-1

China Facade Curtain Wall M2-2

China Facade Curtain Wall M2-3

Projects


REXI Façade is a professional unitized curtain wall manufacturer in China and has specialized in building glass for more than ten years enjoying a good reputation. We also have a team chasing the excellence, not only providing good sales service, but also our technicians must provide the necessary technical support, which can ensure meeting all customer needs rapidly and high-effectively. REXI unitized curtain wall is your right choice, and we can provide you the design and unitized curtain wall fabrication solution according to your requirements.
