REXI Aluminium Cladding Panels enjoys an excellent reputation in the domestic curtain wall field, especially, several major projects operated in Qingdao have been unanimously recognized in the field. In addition, our advanced design concepts and technical features are all powerful competitive advantages.



Product Details

REXI Aluminium Cladding Panels enjoys an excellent reputation in the domestic curtain wall field, especially, several major projects undertaken operated in Qingdao have been unanimously recognized in this field. In addition, our advanced design concepts and technical features are all powerful competitive advantages.

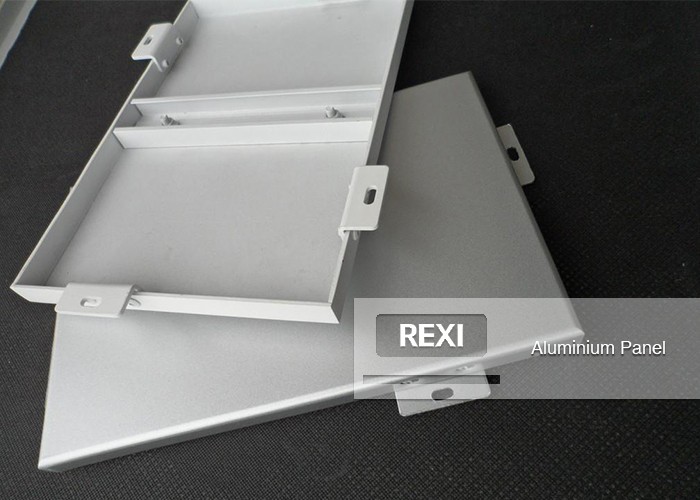

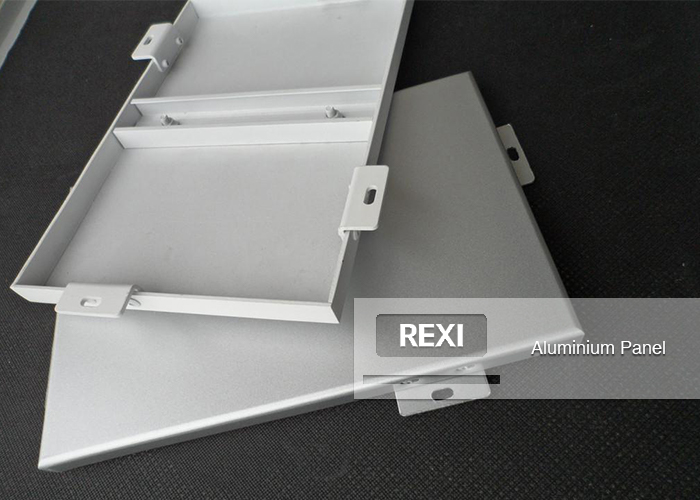

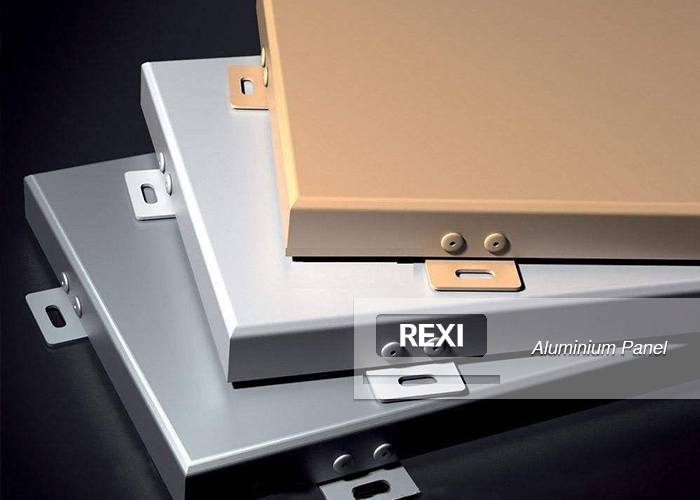

REXI Aluminium Cladding Panels consists of the surface panel with reinforcing ribs & connection aluminum brackets, and structure skeletons with two types, steel structure and aluminum structure skeletons. The surface panels are normally 3.0 mm thick, type 3003 H24, aluminum plate, we also have other different thickness aluminum plates, like 1.5mm, 2.0mm, and 2.5mm. Sometimes, we also use the aluminum composite panels as the surface panels as our clients’ requirements. Structure skeleton is installed first, from bottom to top, then it is the surface panels. The last step is to do the caulking,clean first ,fill the bubble strip, do the silicon sealant and final cleaning. The surface treatment for panels can be PVDF and Powder coated, supplied by PPG、DNT、AKZO、NIPPON, TIGER, normal warranty for 15 years.


PRODUCT TYPES:

 -Flat Aluminium Cladding Panels

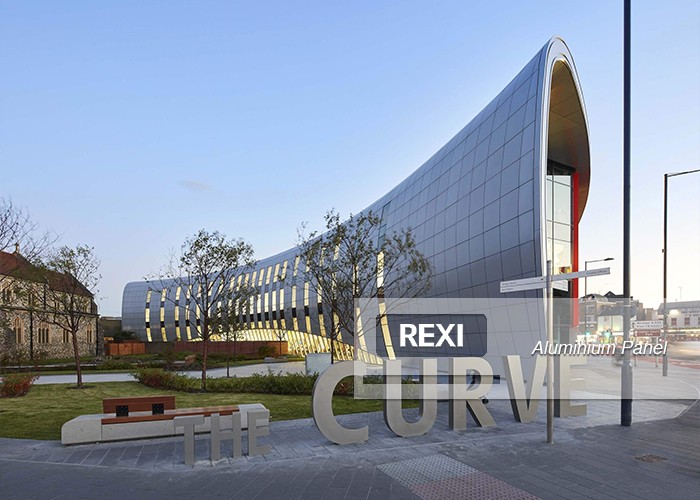

-Double Curve Aluminium Cladding Panels

-Perforated Aluminium Cladding Panels

-PVDF Aluminium Cladding Panels


Aluminium Solid Panel

Aluminium Soild Panel M5

Aluminium Soild Panel M6


FEATURES:

 1. Less weight. Aluminium Cladding Panels is much lighter than other metal material used in construction, less load to the main structure, easy use for high level buildings.

2. Waterproof, antifouling & anticorrosive. Aluminium Cladding Panels has the good performance of waterproofing, antifouling, and anticorrosive to keep the outer surface clean and durable.

3. Easy fabrication, transportation& installation. Aluminium Cladding Panels is easy to be fabricated in the factory, convenient transportation. As long as the structure skeletons are fixed at correct positions, it is very soon to complete installation of aluminum panels.

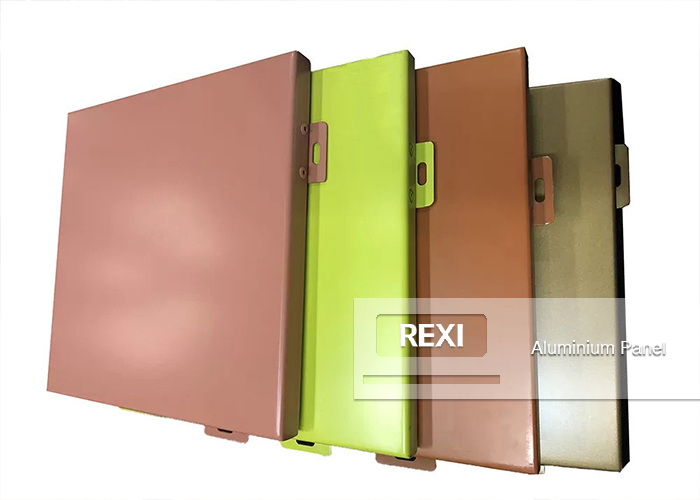

4. Colorful surface. The aluminum panels surface color can be identified from standard color code supplied by PPG、DNT、AKZO、NIPPON, TIGER and the aluminum panel can be fabricated and assembled to different shapes with these colors to help develop Architects’ design space, high cost- efficient, easy to maintain, long lifetime durable in use.

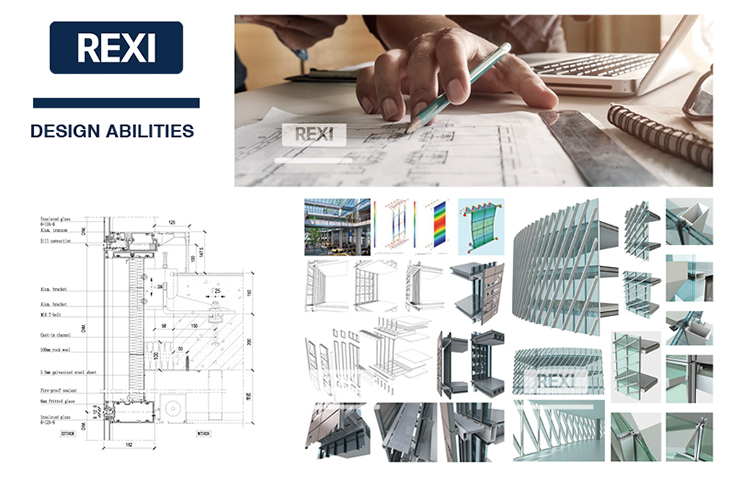

Design

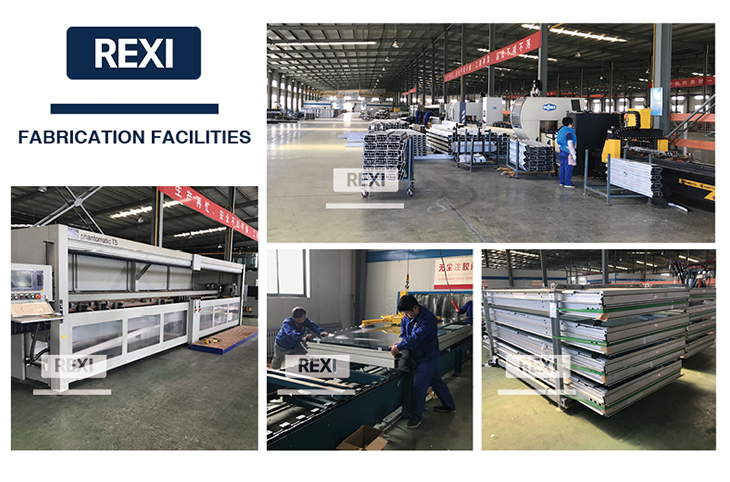

Production

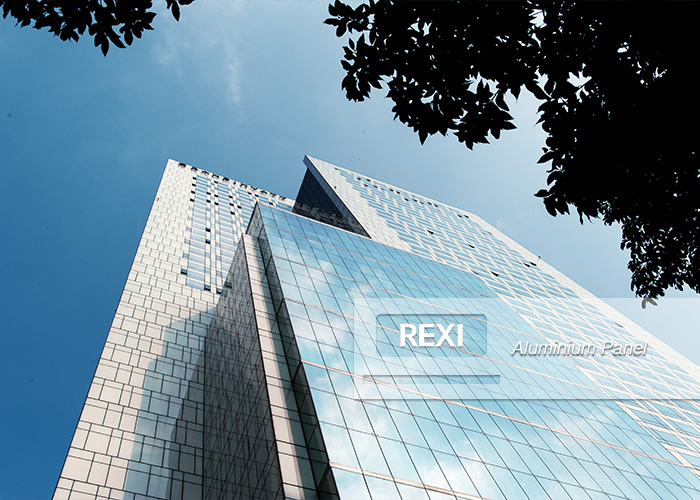

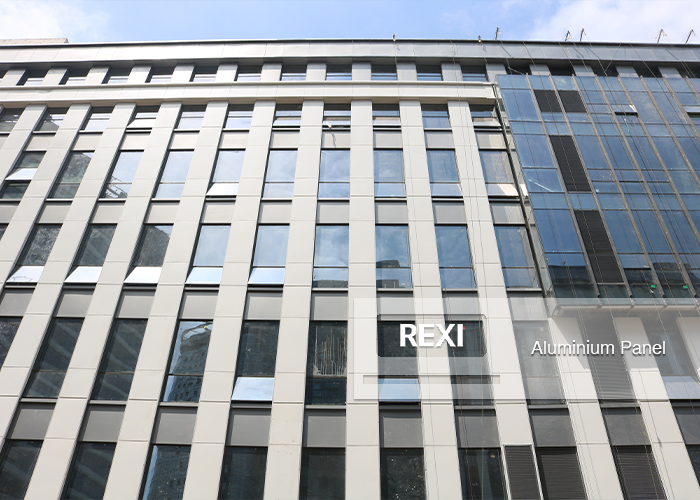

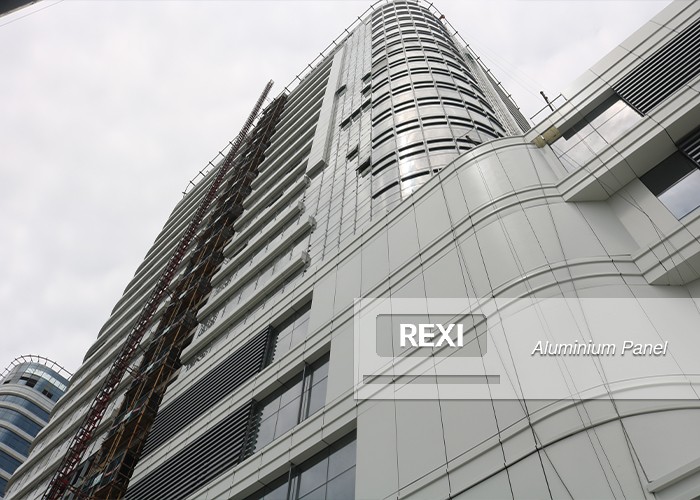

As one of the high level China Aluminium Cladding Panels manufacturers, REXI has built seven large-scale projects in its hometown of Qingdao which are well recognized, and the projects have been extended to other cities in China and Australia, New Zealand, Pakistan and other countries. The one-stop service of China's wall cladding suppliers is our advantage, and it is also the service focus that we are highly respected by our customers.

Chinese wall cladding factories are currently most adept at using insulated glass, which is a combination of coated glass and ordinary glass, filled with dry air. It is divided into double and triple layers. According to measurements, when the outdoor temperature is -10°C, the room temperature in which the triple-layered insulating glass wall is used is 13°C. In the summer, double-glazed wall cladding can block 90% of solar radiant heat while the sun can still pass through the wall, but will not feel hot on the body.

That greatly improve the living environment with a little bit higher wall cladding price. The middle PC board can resist high temperature up to 135 degrees, low temperature -45 degrees.


P4


Aluminium Soild Panel P6

Aluminium Solid Panel P2


REXI Facade is China professional wall cladding manufacturer and has specialized in curtain wall for more than ten years which enjoys a good reputation. We also have a team who pursuits of excellence, not only the experienced sales can provide good sales service, but the technical personnel must provide the necessary technical support, which can ensure the rapid and effective to meet all customer needs. REXI aluminium panel cladding is your right choice, and we provide the modern design according to your requirements.


Main Products:Aluminium   Cladding Panel
Aluminium Solid Panel
Aluminium Perforated Panel
Aluminium Carved Panel
Aluminium Mesh
Aluminium Mashrabiya
Aluminium Ceiling
Material GradeAluminum   AA1100H24,1060H24, 3003H24, 5005H24
Available Thickness0.5mm   ~ 20mm
Surface TreatmentPVDF   Painting / Powder Coating / Wood Grain / Stone Grain
Coating BrandPPG   / AkzoNobel / Jotun
Fabricating ProcessCutting,   Bending, Jointing, Welding, Polishing, Surface Treatment.
Patterns SelectionCustomized   Design available, ODM Design.
Recommend Dimensions1200x   2400mm,1500x 3000mm, Customized size.
Certificates:SGS,ISO   9001:2000,CE,KYNAR 500, etc
Production Capability:100,000sqm   per Month
Delivery time:around   20 days, depends on the panel drawings and quantity
Payment Term:30%TT   in advance,70% Balance before loading, LC at sight
MOQ:1   sqm for thickness 3.0mm,   1000 sqm for thickness >3.0mm
More Service:OEM,   Small samples free
